Welcome to the support page of NG Project Ltd.
On this page you can find related information and software for the SLC product line of the company. The firmware transfer software can be downloaded from here.

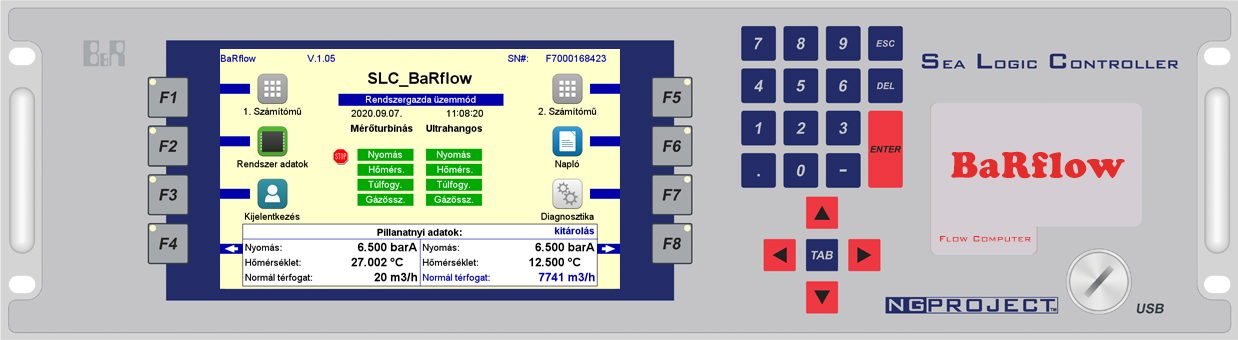

BaRflow
Real-time flow measurement with quality correction for turbine, flange and ultrasonic measuring instruments..
- B&R C70 high performance integrated PLC
- X20 type I/O cards
- 7.0” colored touch panel
- 19” 3U rack design
- 24V DC 1.2A
Communication:
- RS485 MODBUS-RTU
- MODBUS/TCP
User interface:
- Front panel keyboard
- Touch screen
- Wireless diagnostic and parameterization functions are available on: iOS, Android, Windows
- European Union type examination certificate according to EN 12405-1:2005+A22010
- Display of hourly, daily and monthly data
- End of the month closure data saved to own flash based memory
- Export data to USB flash drive
- Save parameters and data to its own flash based memory
- Possibility of running quick test according standards for certification body
- Can be prepared for any mediums authentic energy measurement, accounting, and digital data transmission
Standards:
- ISO 12213
- ISO 5167-3
- AGA8
- SGERG88
- GOST 8.563
SIDOR
SIDOR gas odorization control system for unique and redundant systems.
- B&R C70 high performance integrated PLC
- X20 type I/O cards
- 7.0” colored touch panel
- 19” 3U rack design
- 24V DC 1.2A
Communication:
- RS485 MODBUS-RTU
- MODBUS/TCP
User interface:
- Front panel keyboard
- Touch screen
- Wireless diagnostic and parameterization functions are available on: iOS, Android, Windows
- Automatic dispensing adjustment of odorant to momentary consumption, according to dispensing norm
- Display of hourly, daily and monthly data
- Save parameters and data to its own flash based memory
- Compatible with SIDOR odorization technology*
Applications:
- Unique odorization system:
- Magnetic pump dispenser
- Motor pump dispenser
- Central odorization system:
- Redundant design
- Ordinal performance switch
*In case of costumer request, the system can be adapted to
other odorization system.
For more information on the complete SIDOR system
including the technology unit, please contact NG Project.
uTM
Compact interchangeable device for controlling and monitoring of gas transfer stations.
- B&R C70 high performance integrated PLC
- X20 type I/O cards
- 7.0” colored touch panel
- 19” 3U rack design
- 24V DC 1.2A
Communication:
- RS485 MODBUS-RTU
- MODBUS/TCP
User interface:
- Front panel keyboard
- Touch screen
- Wireless diagnostic and parameterization functions are available on: iOS, Android, Windows
- A proven and reliable system in the gas industry, specialized for the control and monitoring of gas transfer stations
- HMI function
- Integrated HMI
- Dedicated HMI options
- Virtual wireless HMI options
- Can be parameterized with a web based central parameterization application
- Save parameters and data to its own flash based memory
Configuration:
- Basic configuration includes:
- 12 digital input channels
- 8 analog input channels
- 8 digital output channels
- 4 analog output channels
- 20pcs X20 IO internal card slot
- additional external expansion with Remote I/O
PBMI
Compact Profibus DP-based redundant intelligent motor controller.
- B&R C70 high performance integrated PLC
- X20 type I/O cards
- 7.0” colored touch panel
- 19” 3U rack design
- 24V DC 1.2A
Communication:
- RS485 MODBUS-RTU
- MODBUS/TCP
- Profibus DP (in motor direction)
User interface:
- Front panel keyboard
- Touch screen
- Wireless diagnostic and parameterization functions are available on: iOS, Android, Windows
- Simultaneous management of redundant and nonredundant devices up to 64 devices, in standard configuration
- Motors, and position indicators data management and valve control on ModBus
- Freely configurable ModBus addresses
- Web-based diagnostic and parameterization interface
- VNC based user and diagnostic interface
Redundant operation:
- Simultaneous handling of redundant devices from different manufacturers on one BUS
- Supported types:
- AUMA 1 red, Single cable
- Rotork Simple SR
- Flowserve Full system and Flying with 2 line
Extensive ProfiBus device support:
- AUMA
- Rotork
- Westlock
- Flowserver
- arbitrary manufacturers (If GSD data is available)
